Microdisplay Panel
RDP series consists of highly integrated microdisplay panels for optical display system. RDP series provides high resolution in a highly compact panel.
RDP551F
- Resolution: Full HD (1920 x 1080) & 2K1K (2048 x 1024)
- Active Area: 0.55″ / 0.57″
- Pixel Pitch: 6.3 µm
- Module Size: 25.8 x 10 mm
RDP502H
- Resolution: HD (1280 x 720)
- Active Area: 0.5″
- Pixel Pitch: 8.6 µm
- Module Size: 24.8 x 10.8 mm
RDP370F
- Resolution: Full HD (1920 x 1080)
- Active Area: 0.37″
- Pixel Pitch: 4.3 µm
- Module Size: 23.4 x 8.65 mm
RDP370F-X
- Resolution: Full HD (1920 x 1080)
- Active Area: 0.37″
- Pixel Pitch: 4.3 µm
- Module Size: 13.8 x 8.5 mm
RDP250H
- Resolution: HD (1280 x 720)
- Active Area: 0.25″
- Pixel Pitch: 4.3 µm
- Module Size: 8.5 x 8.7 mm
RDP700Q
*sample only- Resolution: WQHD (2560 x 1440)
- HD/FHD to QHD Video Scaler
- Active Area: 0.7″
- Pixel Pitch: 6.05 µm
- Module Size: 28.3 x 12 mm
Controller IC
RDC series processes image processing along with LED controlling and data formatting for RDP series. One controller IC drives two panels simultaneously.
RDC200A *
- Image Size: HD to FHD
- Format: LVDS, MIPI
- Frequency: Up to 110 Hz
- Dimension: 7.4 x 7.4 mm
* Learn about CoKOA function
Optical Engine Module for EV KIT
RAON provides optical engine modules in the evaluation kit for the developers to easily evaluate RAON microdisplay panels.

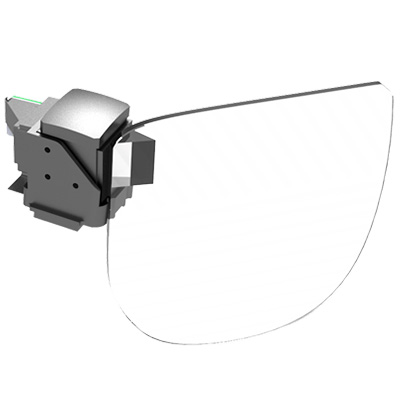

MAXIMUS-M
- Type: Reflective Waveguide
- Resolution: 1440 x 1440
- FoV: 50°
- Controller embedded
OE VISION
- Type: Reflective Waveguide
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 40°
F2-55
- Type: See-through
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 47°
F2-C55
- Type: See-closed
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 47°
R-VISTA55
- Type: See-through
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 45°
R-VISTA50
- Type: See-through
- Panel: RDP502H
- Resolution: 1280 x 720
- FoV: 40°
R-VIEW50
- Type: See-closed
- Panel: RDP502H
- Resolution: 1280 x 720
- FoV: 40°
R-VISTA70
- Type: See-through
- Panel: RDP700Q
- Resolution: 2560 x 1440
- FoV: 55°
- *Available as sample only

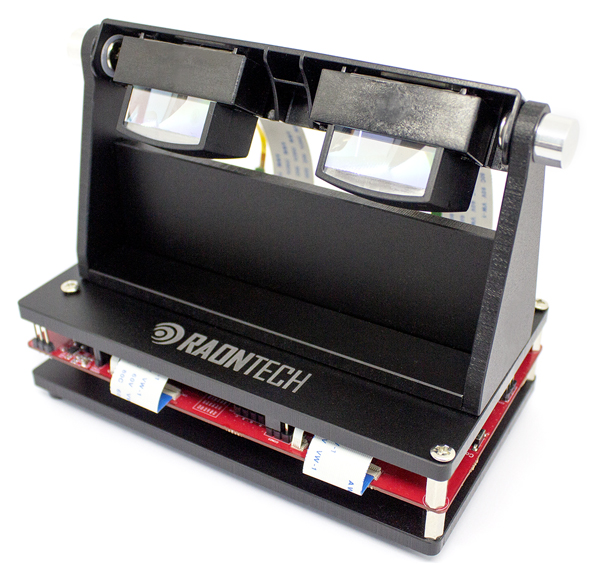

Evaluation Kit
Evaluate the performance and characteristics of RAON microdisplay solution and develop your own system with RAON’s reference design.
- Optical Engine Module
- Microdisplay Panel
- Controller Board
- FPCB Cables
- Control Software Tools
*When ordering, please choose panels and/or optics you would like to evaluate.
